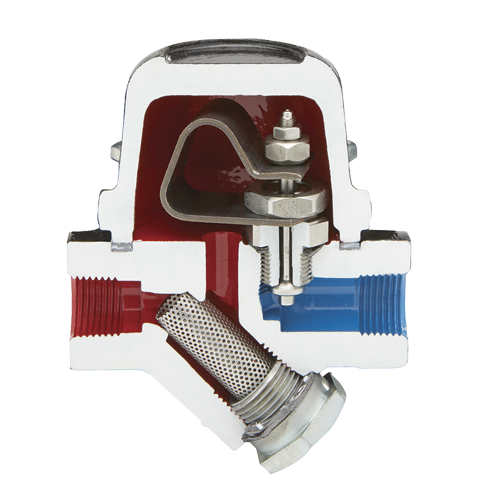

Bestobell DM10E 3/4 in NPT Bimetallic Steam Trap, 750 PSIG PMO

Bestobell DM10E: bimetallic steam trap, 3/4 in NPT, rated 750 psig maximum operating pressure.

Bestobell's DM10E Series Delta Element trap is commonly used as an automatic drain for freeze protection of condensate return systems and manifolds, and on tracer systems where the maximum heat is to be recovered from condensate. The single-blade bimetallic element with stainless steel internals gives modulating discharge and continuous air and CO2 venting.

Specifications

• Size: 3/4 in
• Connection: NPT
• Maximum operating pressure: 750 psig
• Series sizes: 3/8″, 1/2″, 3/4″

Manufacturer documentation: data sheet, installation and maintenance instructions.
