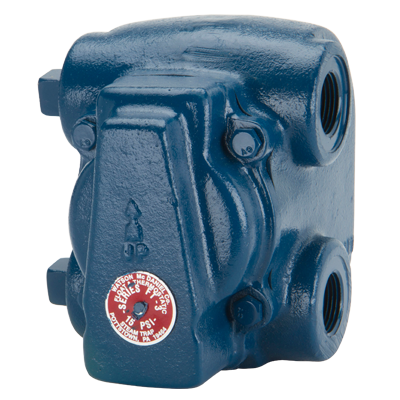

Watson McDaniel FT37L-030-16-N 1 1/2 in NPT Float & Thermostatic Steam Trap, 30 PSIG PMO

The Watson McDaniel FT37L-030-16-N is a 1 1/2 in NPT float & thermostatic steam trap from the FT line, rated for 30 psig maximum operating pressure.

Specifications

• Size: 1 1/2 in
• Connection: NPT
• Maximum operating pressure: 30 psig
• Maximum allowable pressure: 75 psig up to 450 F
• Weight: 22.5 lb

Materials: body Cast Iron, cover Cast Iron, seat Stainless Steel, disc Stainless Steel, thermostat Stainless Steel, float Stainless Steel, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
