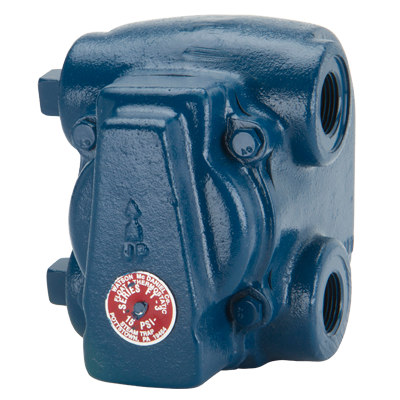

Watson McDaniel FT6-015-15 1 1/4 in NPT Float & Thermostatic Steam Trap, 15 PSIG PMO

The Watson McDaniel FT6-015-15 is a 1 1/4 in NPT float & thermostatic steam trap from the FT line, rated for 15 psig maximum operating pressure.

Specifications

• Size: 1 1/4 in
• Connection: NPT
• Maximum operating pressure: 15 psig
• Maximum allowable pressure: 75 psig up to 450 F
• Weight: 15.75 lb

Materials: body Cast Iron, cover Cast Iron, seat Stainless Steel, disc Stainless Steel, thermostat Stainless Steel, float Stainless Steel, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
