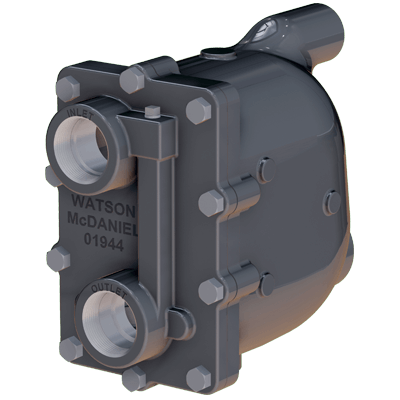

Watson McDaniel FTE-200-17-N 2 in NPT Float & Thermostatic Steam Trap, 200 PSIG PMO

The Watson McDaniel FTE-200-17-N is a 2 in NPT float & thermostatic steam trap from the FTE / FTES line, rated for 200 psig maximum operating pressure.

Specifications

• Size: 2 in
• Connection: NPT
• Maximum operating pressure: 200 psig
• Maximum allowable pressure: 300 psig up to 450 F
• Weight: 62 lb

Materials: body Ductile Iron, cover Ductile Iron, valve housing Stainless Steel,17-4 PH, disc Stainless Steel,17-4 PH, thermostat 304 SS, float 304 SS, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
