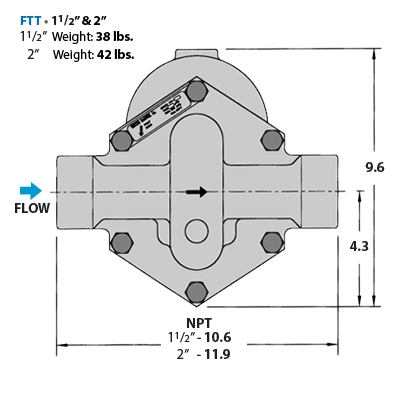

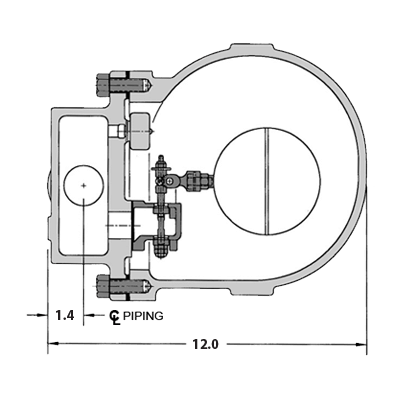

Watson McDaniel FTT-145-16-N 1 1/2 in NPT Float & Thermostatic Steam Trap, 145 PSIG PMO

The Watson McDaniel FTT-145-16-N is a 1 1/2 in NPT float & thermostatic steam trap from the FTT / FTTS line, rated for 145 psig maximum operating pressure.

Specifications

• Size: 1 1/2 in
• Connection: NPT
• Maximum operating pressure: 145 psig
• Maximum allowable pressure: 300 psig up to 450 F
• Weight: 38.5 lb

Materials: body Ductile Iron, cover Ductile Iron, valve Stainless Steel,17-4 PH, disc 420F SS, thermostat Stainless Steel, float 304 SS, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
