Bestobell GM3 1 1/4 in NPT Bimetallic Steam Trap, 30 PSIG PMO

Bestobell GM3: bimetallic steam trap, 1 1/4 in NPT, rated 30 psig maximum operating pressure.

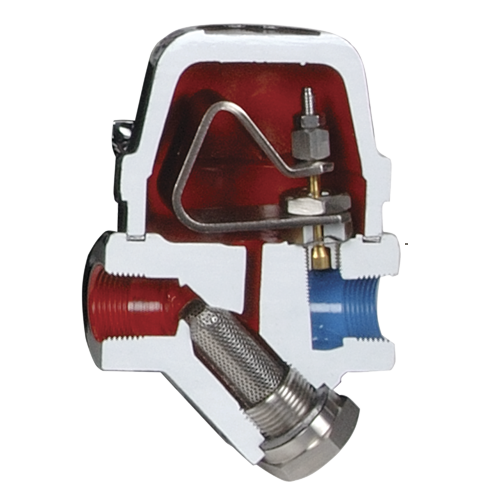

Bestobell's M3A and GM3 Series Delta Element steam traps give fast start-up and modulating discharge without live steam loss on services up to 30 psig differential, in a forged body with a Y-type strainer and check valve. They suit light condensate loads such as low-pressure drip legs, and the single-blade bimetallic element resists the dirt build-up that affects multi-element designs.

Specifications

• Size: 1 1/4 in
• Connection: NPT
• Maximum operating pressure: 30 psig
• Body: Forged Carbon Steel
• Series sizes: M3A: 3/8″, 1/2″, 3/4″; GM3: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″

Manufacturer documentation: data sheet, installation and maintenance instructions.
