Bestobell GM16 3/4 in NPT Bimetallic Steam Trap, 200 PSIG PMO

Bestobell GM16: bimetallic steam trap, 3/4 in NPT, rated 200 psig maximum operating pressure.

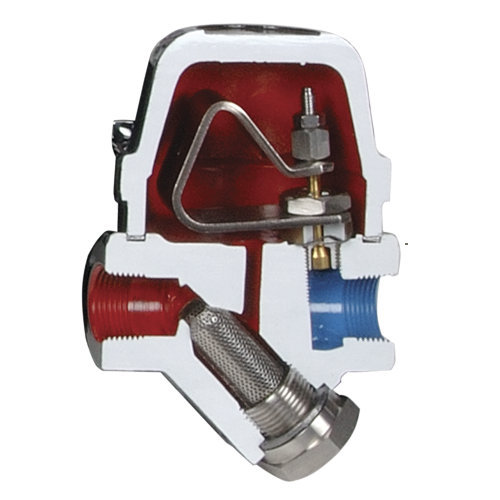

Bestobell's M16 and GM16 Series Delta Element steam traps handle the varying loads of process applications with fast start-up and modulating discharge and no live steam loss, rated to 200 psig operating pressure. An integral strainer and check valve protect the trap, and the single-blade bimetallic element with stainless steel internals resists dirt build-up.

Specifications

• Size: 3/4 in
• Connection: NPT
• Maximum operating pressure: 200 psig
• Series sizes: M16: 1/2″, 3/4″, 1″, 1-1/2″, 2″; GM16: 1/2″, 3/4″

Manufacturer documentation: data sheet, installation and maintenance instructions.
