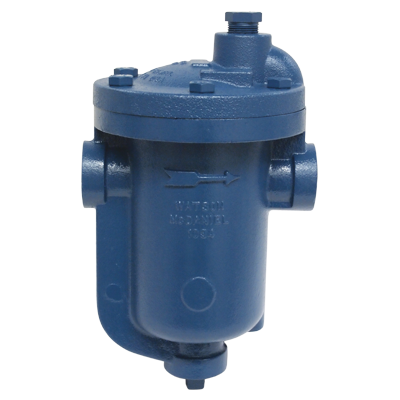

Watson McDaniel IB103312-N-200 1/2 in NPT Inverted Bucket Steam Trap, 200 PSIG PMO

The Watson McDaniel IB103312-N-200 is a 1/2 in NPT inverted bucket steam trap from the IB Series line, rated for 200 psig maximum operating pressure.

Specifications

• Size: 1/2 in
• Connection: NPT
• Maximum operating pressure: 200 psig
• Maximum allowable pressure: 250 psig up to 450 F
• Orifice: 1/8 in
• Weight: 17 lb

Materials: body Cast Iron, cover Cast Iron, valve 420 SS, seat 420 SS, strainer 316 SS, bucket 304 SS, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
