Watson McDanielPart No. IB1034-13-N-125

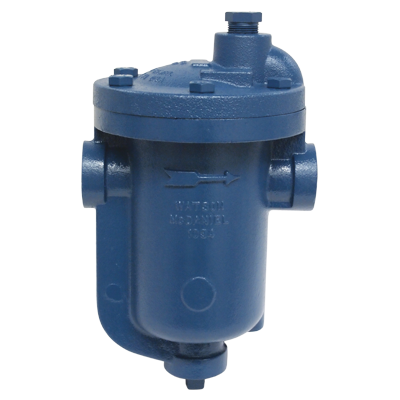

Watson McDaniel IB1034-13-N-125 3/4 in NPT Inverted Bucket Steam Trap, 125 PSIG PMO
Watson McDaniel IB1034-13-N-125 3/4 in NPT Inverted Bucket Steam Trap, 125 PSIG PMO
Regular price
$832.70 USD
Regular price
Sale price
$832.70 USD
Quantity
Couldn't load pickup availability
Specifications
| Part number | IB1034-13-N-125 |
|---|---|
| Brand | Watson McDaniel |
| Model | 1034 |
| Series | IB Series |
| Mechanism | Inverted Bucket |
| Pipe size | 3/4 in |
| Connection | NPT |
| Max operating pressure (PMO) | 125 psig |
| Max allowable pressure (PMA) | 250 psig |
| Max allowable temperature (TMA) | 450 °F |
| Orifice | 1/4" |
| Body material | Cast Iron |
| Shipping weight | 30 lb |
Downloads
On the manufacturer's site
The Watson McDaniel IB1034-13-N-125 is a 3/4 in NPT inverted bucket steam trap from the IB Series line, rated for 125 psig maximum operating pressure.
Specifications
- Size: 3/4 in
- Connection: NPT
- Maximum operating pressure: 125 psig
- Maximum allowable pressure: 250 psig up to 450 F
- Orifice: 1/4 in
- Weight: 30 lb
Materials: body Cast Iron, cover Cast Iron, valve 420 SS, seat 420 SS, strainer 316 SS, bucket 304 SS, internals Stainless Steel.
Manufacturer documentation: specification sheet, installation and maintenance manual.
