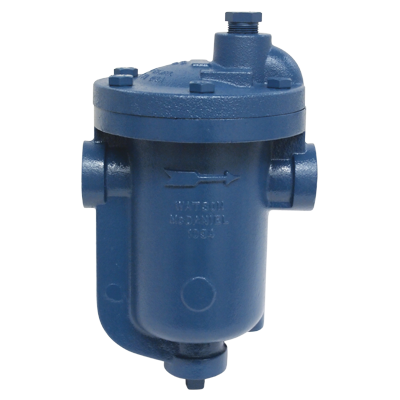

Watson McDaniel IB1034-13-N-60 3/4 in NPT Inverted Bucket Steam Trap, 60 PSIG PMO

The Watson McDaniel IB1034-13-N-60 is a 3/4 in NPT inverted bucket steam trap from the IB Series line, rated for 60 psig maximum operating pressure.

Specifications

• Size: 3/4 in
• Connection: NPT
• Maximum operating pressure: 60 psig
• Maximum allowable pressure: 250 psig up to 450 F
• Orifice: 5/16 in
• Weight: 30 lb

Materials: body Cast Iron, cover Cast Iron, valve 420 SS, seat 420 SS, strainer 316 SS, bucket 304 SS, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
