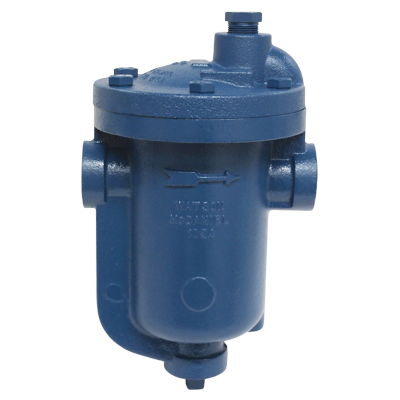

Watson McDaniel IB1034-14-N-80 1 in NPT Inverted Bucket Steam Trap, 80 PSIG PMO

The Watson McDaniel IB1034-14-N-80 is a 1 in NPT inverted bucket steam trap from the IB Series line, rated for 80 psig maximum operating pressure.

Specifications

• Size: 1 in
• Connection: NPT
• Maximum operating pressure: 80 psig
• Maximum allowable pressure: 250 psig up to 450 F
• Orifice: 9/32 in
• Weight: 30 lb

Materials: body Cast Iron, cover Cast Iron, valve 420 SS, seat 420 SS, strainer 316 SS, bucket 304 SS, internals Stainless Steel.

Manufacturer documentation: specification sheet, installation and maintenance manual.
