Watson McDanielPart No. IB1041-12-N-125

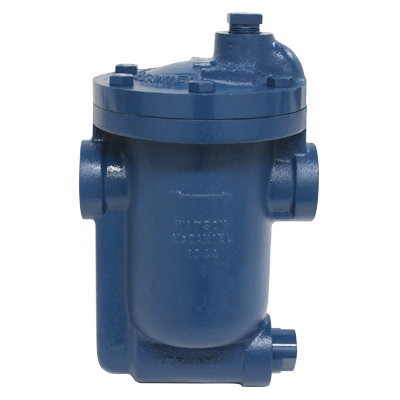

Watson McDaniel IB1041-12-N-125 1/2 in NPT Inverted Bucket Steam Trap with Strainer, 125 PSIG PMO
Watson McDaniel IB1041-12-N-125 1/2 in NPT Inverted Bucket Steam Trap with Strainer, 125 PSIG PMO
Regular price
$262.90 USD
Regular price
Sale price
$262.90 USD
Quantity
Couldn't load pickup availability
Specifications
| Part number | IB1041-12-N-125 |
|---|---|
| Brand | Watson McDaniel |
| Series | IB Series |
| Mechanism | Inverted Bucket |
| Pipe size | 1/2 in |
| Connection | NPT |
| Max operating pressure (PMO) | 125 psig |
| Max allowable pressure (PMA) | 250 psig |
| Max allowable temperature (TMA) | 450 °F |
| Orifice | 7/64" |
| Body material | Cast Iron |
| Shipping weight | 7 lb |
Downloads
- pdf Watson McDaniel WT3000 thermostatic steam trap installation and maintenance manual
- pdf Watson McDaniel IB Series inverted bucket steam trap data sheet
On the manufacturer's site
The Watson McDaniel IB1041-12-N-125 is a 1/2 in NPT inverted bucket steam trap with strainer from the IB Series line, rated for 125 psig maximum operating pressure.
Specifications
- Size: 1/2 in
- Connection: NPT
- Maximum operating pressure: 125 psig
- Maximum allowable pressure: 250 psig up to 450 F
- Orifice: 7/64 in
- Weight: 7 lb
Materials: body Cast Iron, cover Cast Iron, valve 420 SS, seat 420 SS, strainer 316 SS, bucket 304 SS, internals Stainless Steel.
Manufacturer documentation: specification sheet, installation and maintenance manual.
