Bestobell M22 3/4 in NPT Bimetallic Steam Trap, 300 PSIG PMO

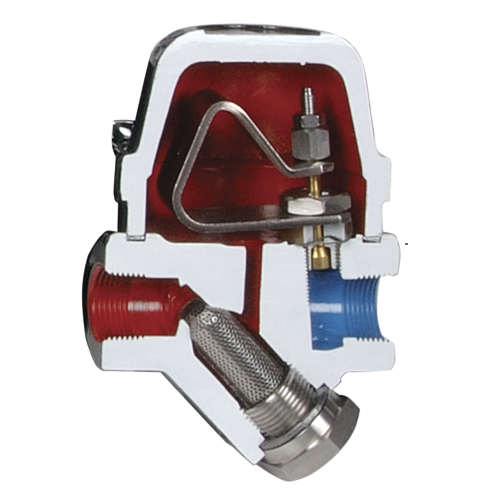

Bestobell M22: bimetallic steam trap, 3/4 in NPT, rated 300 psig maximum operating pressure.

Bestobell's M22 and TM22 Series Delta Element steam traps are fully maintainable tracing traps for differential pressures up to 300 psi. They are designed to use the latent heat of steam and the sensible heat of condensate before discharge, with no live steam loss, modulating discharge and continuous air and CO2 venting.

Specifications

• Size: 3/4 in
• Connection: NPT
• Maximum operating pressure: 300 psig
• Series sizes: 3/8″, 1/2″, 3/4″

Manufacturer documentation: data sheet, installation and maintenance instructions.
