Bestobell M25 3/4 in NPT Bimetallic Steam Trap, 320 PSIG PMO

Bestobell M25: bimetallic steam trap, 3/4 in NPT, rated 320 psig maximum operating pressure.

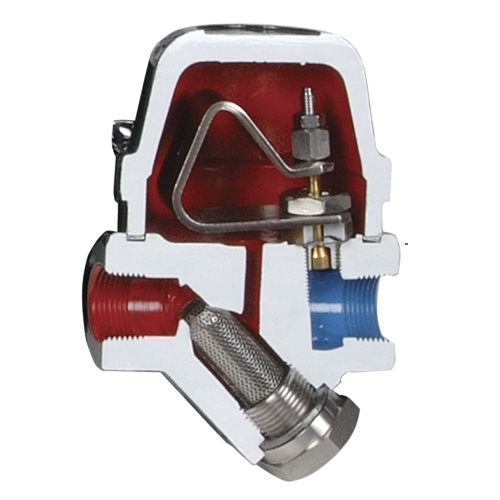

Bestobell's M25 and GM25 Series are compact, high-capacity Delta Element steam traps for the varying loads and pressures of process heating, with operating pressures to 320 psig. They carry an integral strainer and check valve, vent air and CO2 continuously, and use a single-blade bimetallic element with stainless steel internals for long service.

Specifications

• Size: 3/4 in
• Connection: NPT
• Maximum operating pressure: 320 psig
• Series sizes: M25: 1/2″, 3/4″, 1″, 1-1/2″, 2″; GM25: 1/2″, 3/4″

Manufacturer documentation: data sheet, installation and maintenance instructions.
