Bestobell 6A 3/8 in NPT Bimetallic Steam Trap, 70 PSIG PMO

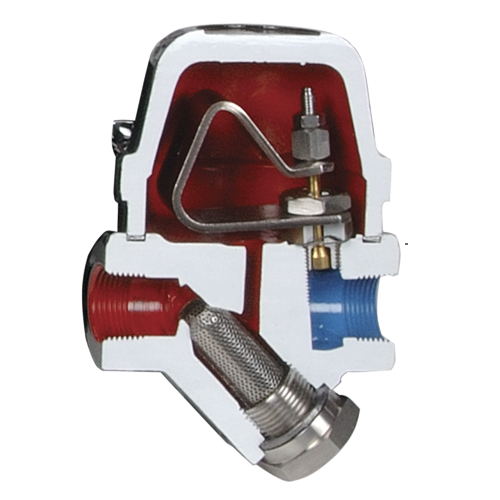

Bestobell 6A: bimetallic steam trap, 3/8 in NPT, rated 70 psig maximum operating pressure.

Bestobell's M6A and GM6 Series Delta Element steam traps are built for low condensate loads, with a forged carbon steel body and a built-in Y-type strainer. They combine thermostatic and thermodynamic action for steam-tight shutoff, discharge modulates with pressure and load, air and CO2 vent continuously, and stainless steel internals resist fatigue and corrosion. Maximum differential pressure is 70 psig.

Specifications

• Size: 3/8 in
• Connection: NPT
• Maximum operating pressure: 70 psig
• Body: Forged Carbon Steel
• Series sizes: M6A: 3/8″, 1/2″, 3/4″; GM6: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″

Manufacturer documentation: data sheet, installation and maintenance instructions.
